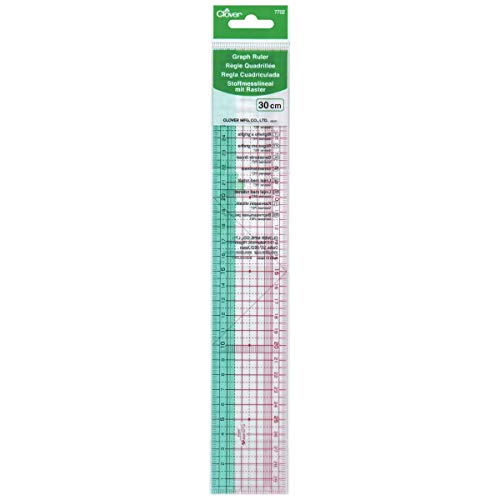

Clover Graph Ruler 7702 30 cm Placement Ruler

Clover’s 7702 Graph Ruler is a 30 cm measuring and drafting tool with parallel guides and a 45-degree line. The manufacturer describes a flexible material for measuring curved portions and scales intended to remain readable on dark fabrics. This is the 30 cm model, not the longer 7703 ruler.[1]

In an embroidery workflow, its useful job is establishing a physical reference before hooping. Draw a true-size bounding rectangle on paper, check its position on the blank, and record the offset from a repeatable feature such as the panel center or a seam. The ruler can support that measurement task without implying that a particular hoop attaches to a machine or that an embroidery file is compatible.

Keep measured placement separate from usable stitch area. A motif can look right on a shirt and still be difficult to mount because of seams or restricted access. Recheck the position after hooping and follow the machine’s own preview procedure. Pair the ruler with a marking method tested on the actual fabric, rather than assuming a pen is safe because the ruler is suitable. This is a source-based tool selection, not a precision-calibration or hands-on durability test.[1]

Sources

• [1] Graph Ruler (30 cm) – CLOVER

manufacturer sku

7702

length

30 cm

features

Flexible material, parallel guides, 45-degree line

These notes summarize source research, not hands-on testing. Confirm model specifications, included accessories, and the seller listing before buying.

Fit calculations compare rectangular dimensions only. They do not establish mechanical hoop compatibility or stitch quality.
